ACOCHEM CRISTALPROOF is a complete range of crystalline waterproofing systems for concrete, developed to reduce water penetration and provide durable protection within the concrete structure.
Unlike conventional waterproofing membranes that depend mainly on a surface barrier, crystalline waterproofing technology works through the capillary network of the concrete. Its active components react with moisture and cementitious materials to form insoluble crystalline structures inside pores, capillaries and fine cracks.
These crystals help block water pathways while remaining integrated with the concrete. Because moisture activates the crystalline reaction, CRISTALPROOF can continue to provide concrete waterproofing protection when the structure is exposed to water.
UREASPRAY 400 is ACOCHEM's 100% pure aromatic hot spray polyurea membrane for professional waterproofing and concrete-protection applications.
The system combines extremely rapid curing with excellent elasticity, crack-bridging properties and mechanical resistance.
UREASPRAY 400 can be used as a high-performance waterproofing and protective membrane for both new construction and rehabilitation projects.
Preventive waterproofing seals concrete construction joints before water infiltration occurs. ACOCHEM offers bentonite and polymer hydrophilic swell joints, as well as reinjectable injection hoses for long-term joint protection.
Let's discover,
Integral Waterproofing Technology:
CRISTALPROOF
CRISTALPROOF
HOW DOES CRYSTALLINE WATERPROOFING WORK?
Although concrete appears solid, its internal structure contains microscopic pores and capillaries that can allow water to migrate through the material.
CRISTALPROOF crystalline waterproofing technology is designed to reduce this permeability from within the concrete. When the active ingredients come into contact with moisture and the cementitious matrix, they promote the formation of insoluble crystalline structures throughout the capillary network.
The crystals progressively reduce water pathways and help prevent further water penetration. The waterproofing effect therefore becomes integrated into the concrete rather than relying only on a coating or membrane bonded to the surface.
This makes crystalline waterproofing suitable for concrete structures exposed to groundwater, hydrostatic pressure, humidity and intermittent or continuous water contact.
New concrete
Use CRISTALPROOF ADMIX as an integral crystalline waterproofing admixture added to fresh concrete.
Existing concrete
Use CRISTALPROOF L1 as a spray-applied or brush-applied crystalline waterproofing treatment for prepared concrete surfaces.
Active water leaks
Use CRISTALPROOF WATERSTOP to rapidly stop localized active water leaks before completing the wider concrete waterproofing system.
The three products can be used individually or combined to provide an integrated crystalline waterproofing solution.

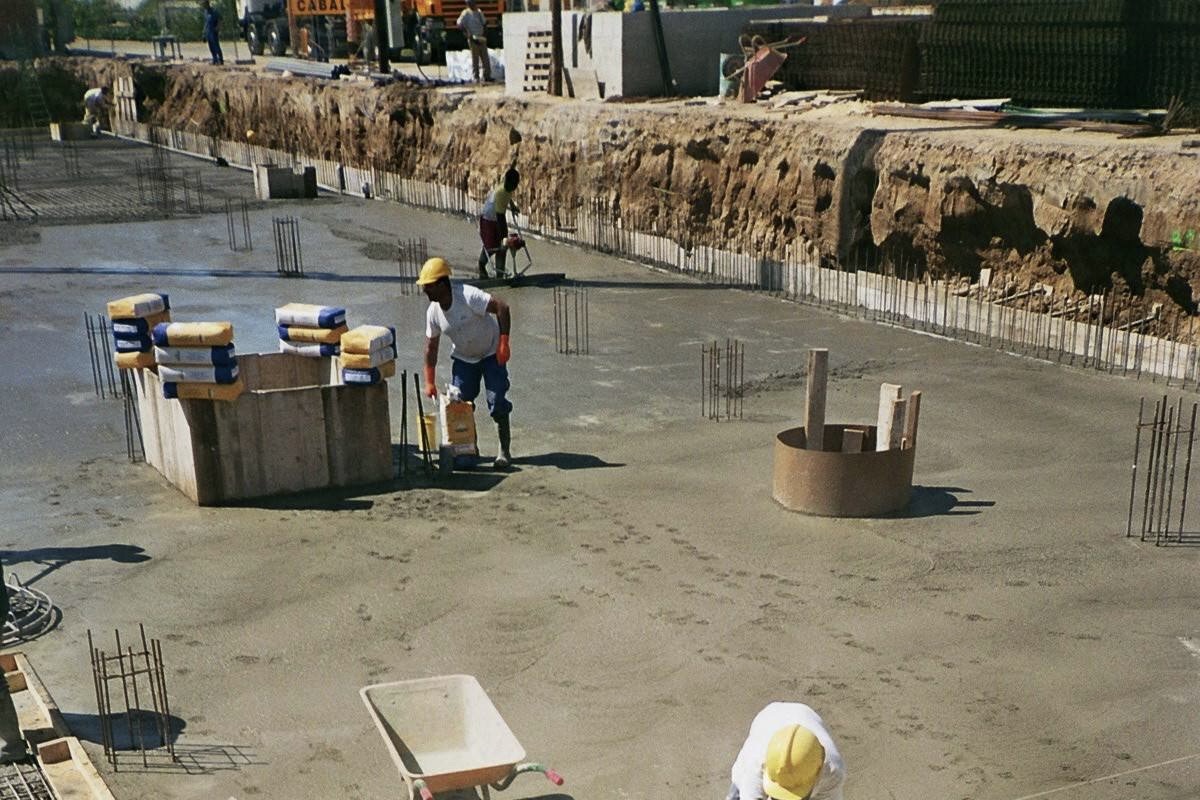

CRISTALPROOF ADMIX is an integral crystalline waterproofing admixture added directly to fresh concrete during batching or concrete production.
By incorporating the waterproofing admixture into the concrete mix, crystalline protection becomes an integral part of the concrete matrix. When water enters the capillary network, the active components react with moisture and hydrated cement constituents to form insoluble crystalline structures.
These formations help reduce water passage through the concrete and support the production of watertight concrete structures exposed to groundwater or hydrostatic water pressure.
CRISTALPROOF ADMIX is suitable for integral concrete waterproofing in new construction, infrastructure and water-retaining structures.
Typical applications: Foundations and basement structures, Raft slabs, Retaining walls, Cut-and-cover tunnels, Underground stations, Concrete water tanks, Reservoirs, Swimming pools, Sewage treatment plants, Marine and harbour structures, Dams and hydraulic structures, Parking structures, Precast concrete, Infrastructure projects

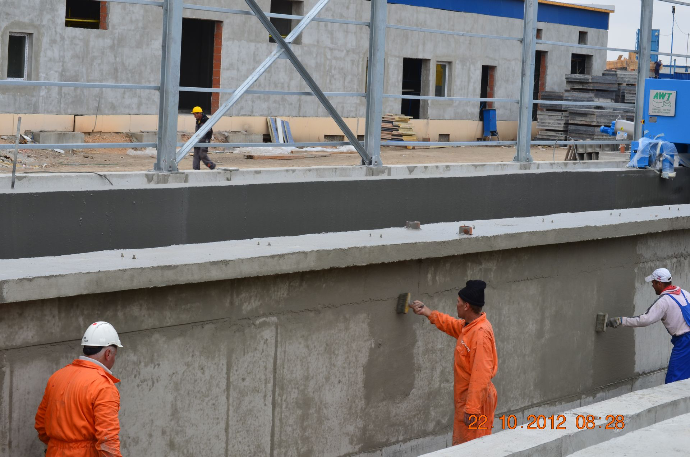

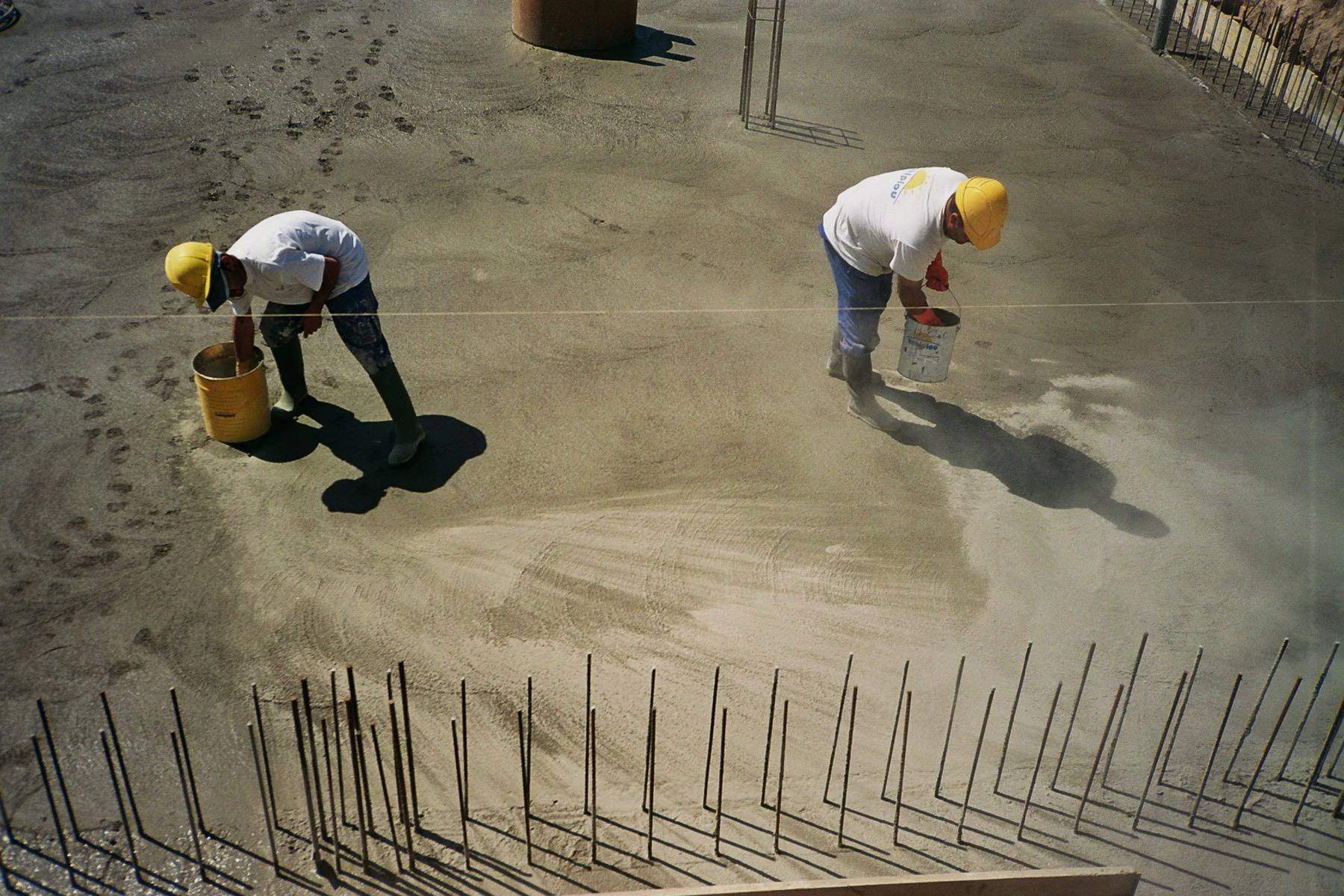

CRISTALPROOF L1 is a cementitious crystalline waterproofing treatment for concrete, applied directly to prepared surfaces by brush or spray.
After application to a correctly prepared and pre-wetted concrete substrate, the active components react in the presence of moisture and develop crystalline formations within the concrete capillaries.
CRISTALPROOF L1 is more than a conventional surface coating. Its crystalline waterproofing action penetrates into the concrete structure, helping reduce water permeability and protect existing concrete against water ingress.
Typical applications: Basements and foundations, Retaining walls, Concrete slabs, Water tanks and reservoirs, Swimming pools, Tunnels and underground structures, Lift pits, Sewage and wastewater structures, Concrete roofs, Parking structures, Dams and hydraulic structures, Existing concrete requiring additional waterproofing protection
CRISTALPROOF WATERSTOP is a fast-setting crystalline waterproofing mortar for active water leaks through concrete. It is designed for rapid localized repair of running water, water-bearing cracks, construction defects and penetrations.
The mortar reacts quickly, allowing contractors to control active water infiltration before applying a broader crystalline waterproofing treatment. CRISTALPROOF WATERSTOP can therefore serve as the first stage of an integrated concrete waterproofing repair system.
After active water leaks have been stopped, surrounding concrete can be treated with CRISTALPROOF L1 where required.
Typical applications: Active water leaks, Water-bearing cracks, Construction joints, Wall-to-floor connections, Pipe penetrations, Tie holes, Honeycombed concrete, Basements, Tunnels, Water tanks, Underground concrete structures
Let's discover,
Pure Hotspray Polyurea:
UREASPRAY
ACOCHEM develops and supplies specialist construction chemical systems for waterproofing, concrete protection, tunnelling and underground infrastructure.
Our UREASPRAY range complements our injection and waterproofing technologies, allowing ACOCHEM to provide solutions from stopping active water infiltration to protecting the complete structure with a seamless sprayed membrane.
UREASPRAY 400 is a high end 100 % pure aromatic polyurea hot spray system for waterproofing of concrete structures and protection of steel surfaces with excellent mechanical and chemical properties.
Advantages:
- Extremely fast curing
- Seamless and joint-free waterproofing
- High elasticity and crack-bridging capability
- Excellent mechanical and abrasion resistance
- Strong adhesion to correctly prepared and primed substrates
- Rapid application over large surface areas
- Easy application around complex geometries and details
- Suitable for horizontal, vertical and overhead applications
- Protection of concrete and steel structures
- Reduced project downtime and rapid return to service
- Durable waterproofing for demanding infrastructure environments
Applications

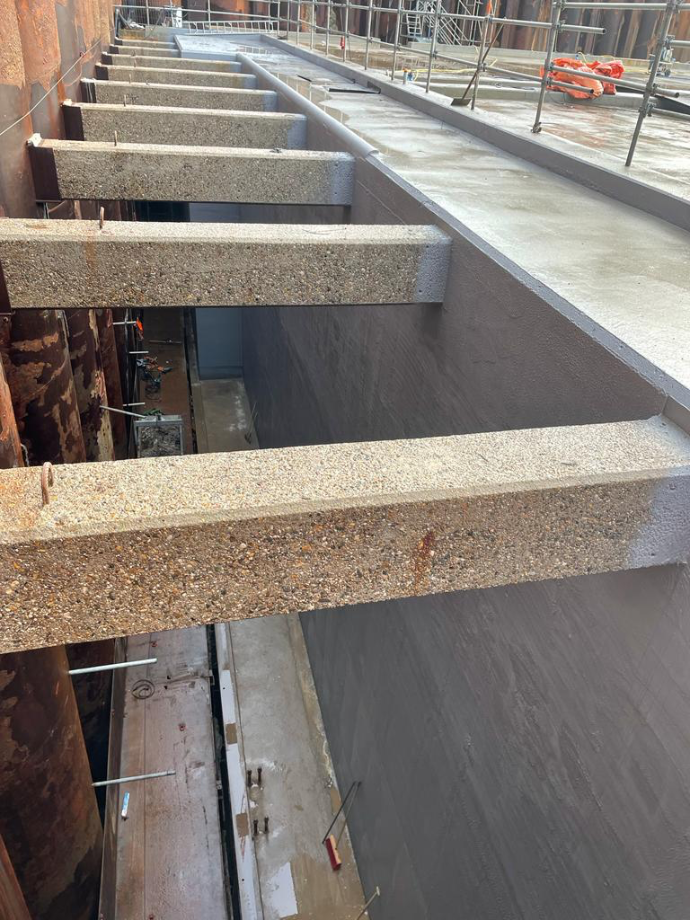

Polyurea for Tunnel Waterproofing
Hot spray polyurea for tunnels provides a continuous waterproofing membrane that can be applied to complex underground structures.
Typical applications include:
- Cut-and-cover tunnels
- Tunnel portals
- Underground stations
- Shafts
- Technical rooms
- Cross passages
- Concrete tunnel roofs and walls
- Waterproofing details and penetrations
The rapid application of polyurea can be particularly valuable on major infrastructure projects where construction schedules and access windows are critical.

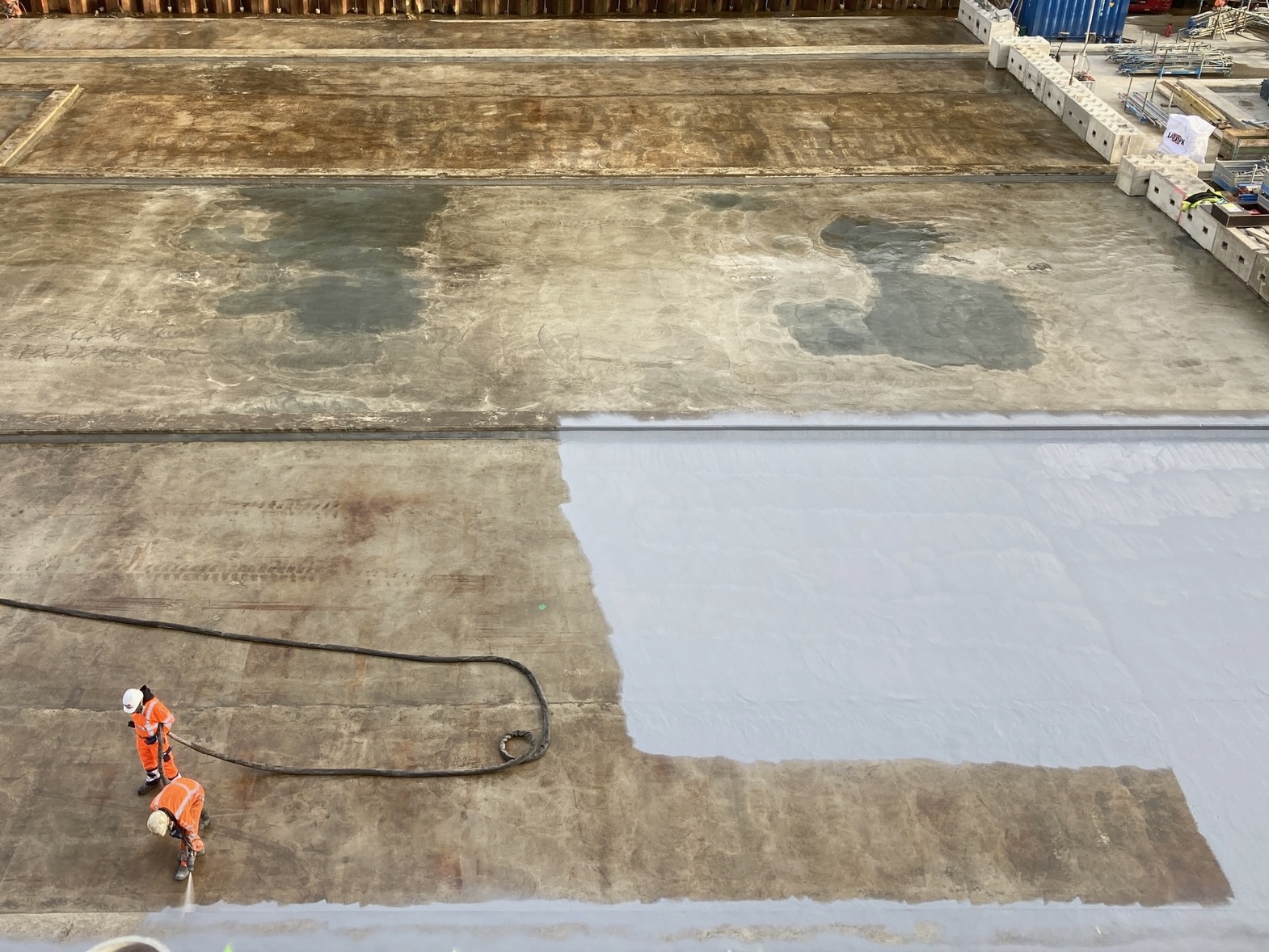

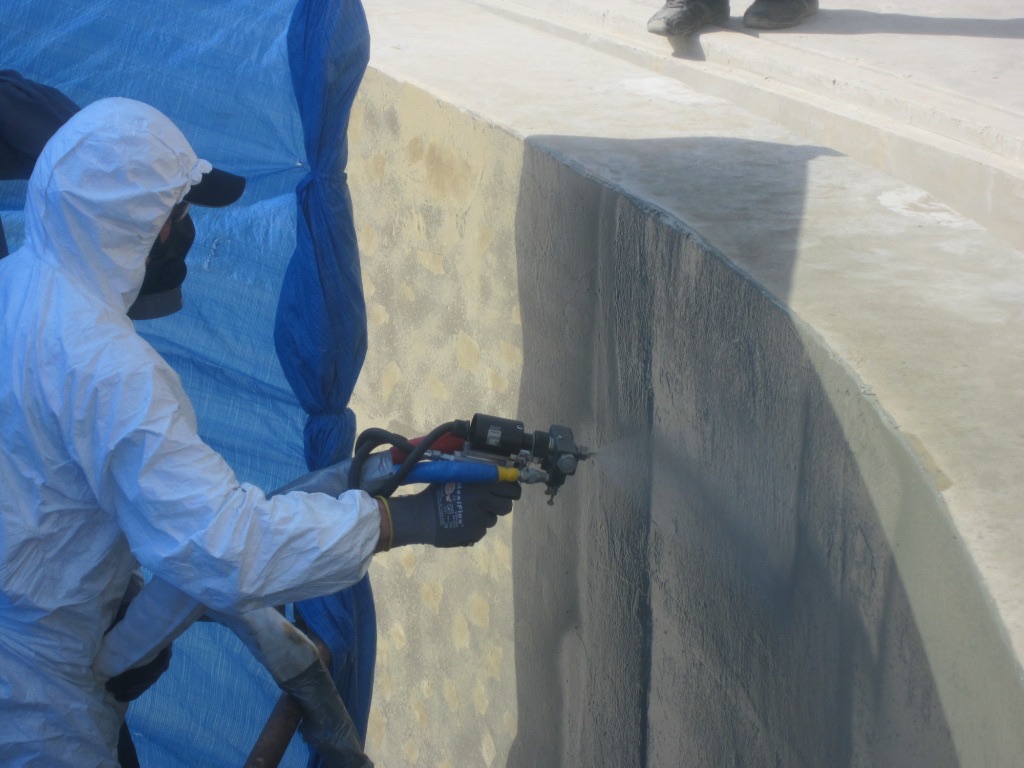

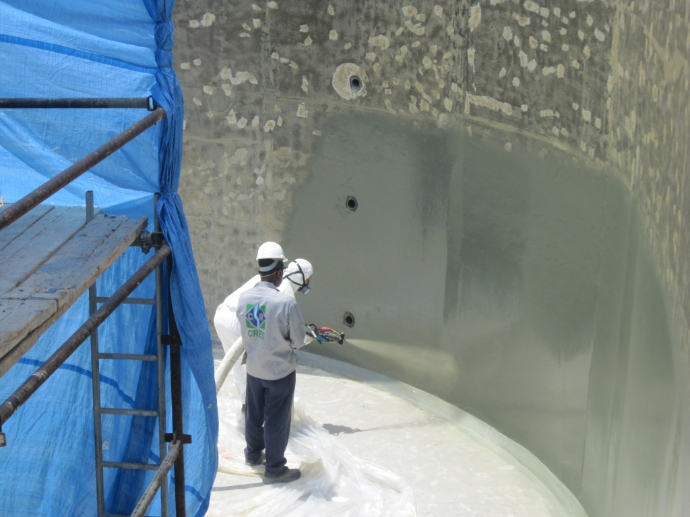

Polyurea for Concrete Waterproofing
Concrete structures are continuously exposed to water, moisture, chemicals and environmental deterioration.
A correctly specified spray-applied polyurea membrane creates a continuous barrier protecting the underlying concrete.
Typical applications include:
- Concrete roofs and podium decks
- Basements and underground structures

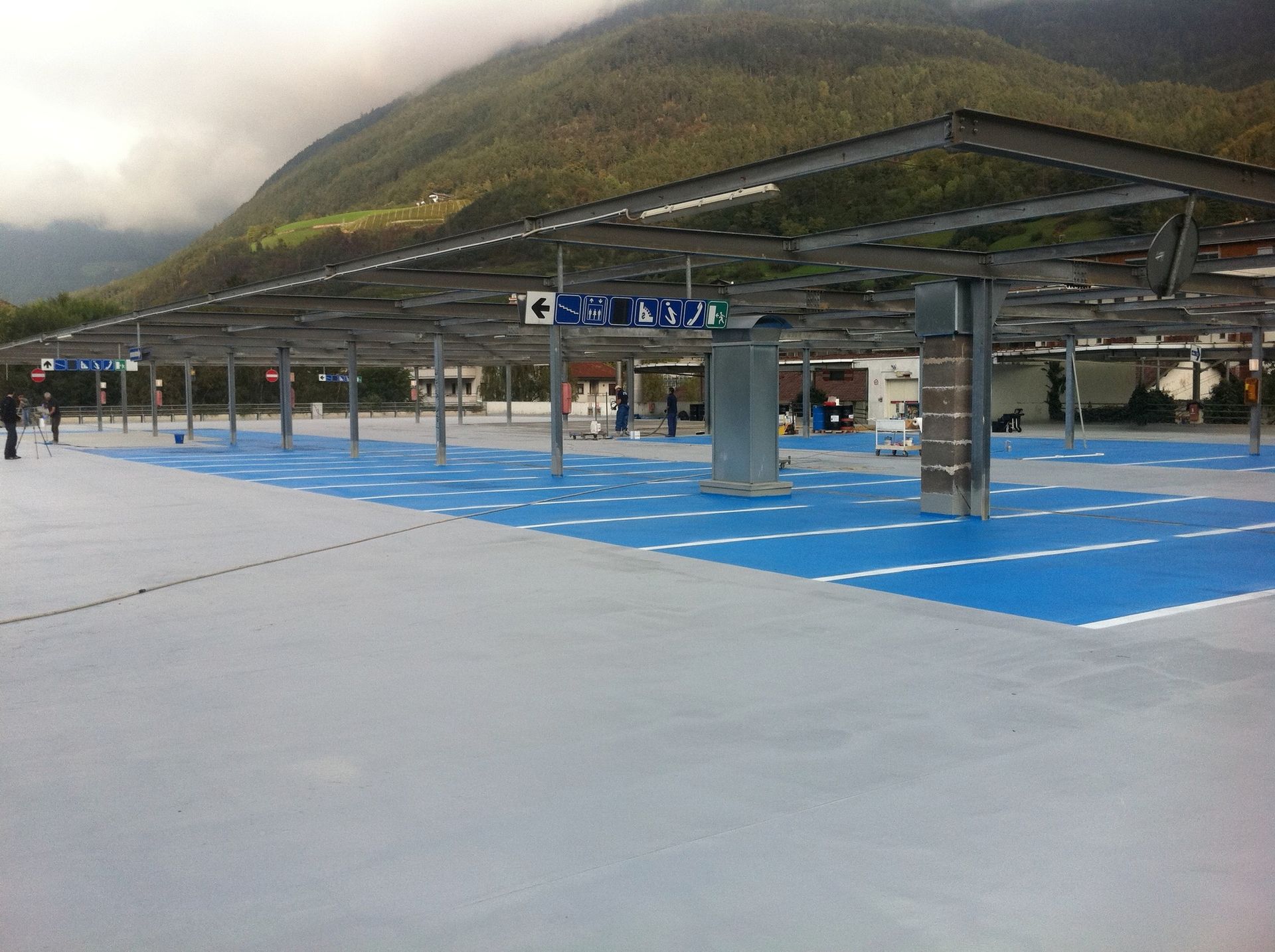

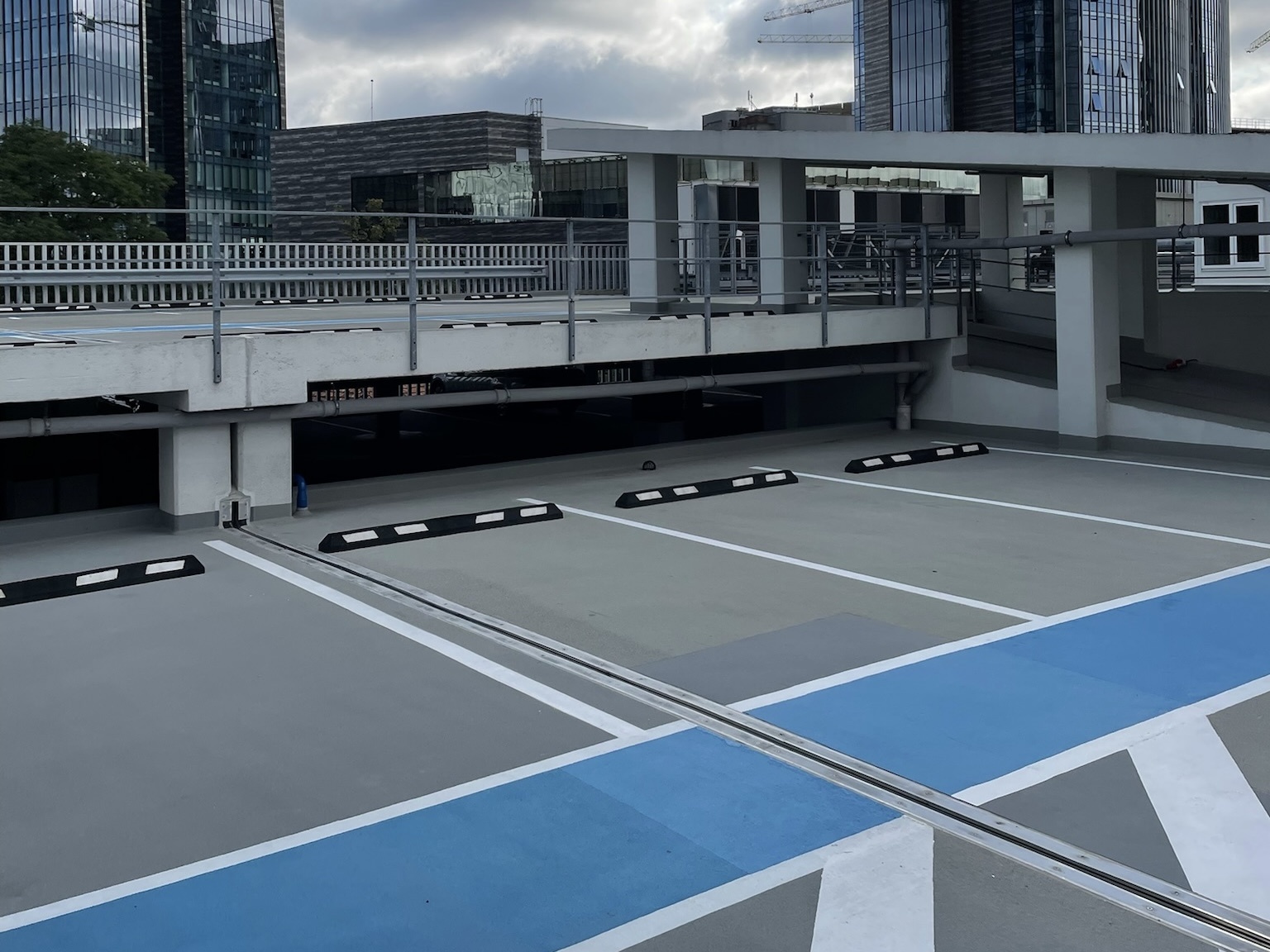

- Parking decks
- Water-retaining structures
- Wastewater treatment facilities
- Secondary containment
- Industrial structures
- Infrastructure rehabilitation

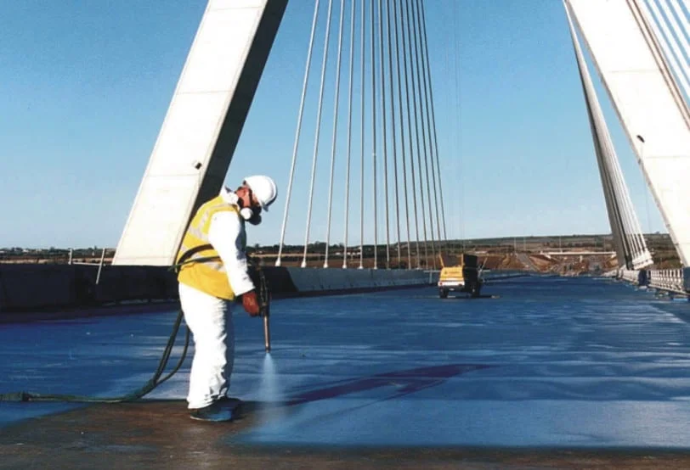

Polyurea for Bridge Deck Waterproofing
Polyurea bridge deck waterproofing provides a highly elastic protective barrier between the structural concrete and the overlying road or protection system.
The seamless membrane helps protect reinforced concrete against water and contaminants while accommodating normal structural movement.
Its extremely rapid curing can significantly reduce the time required between membrane application and subsequent construction operations.

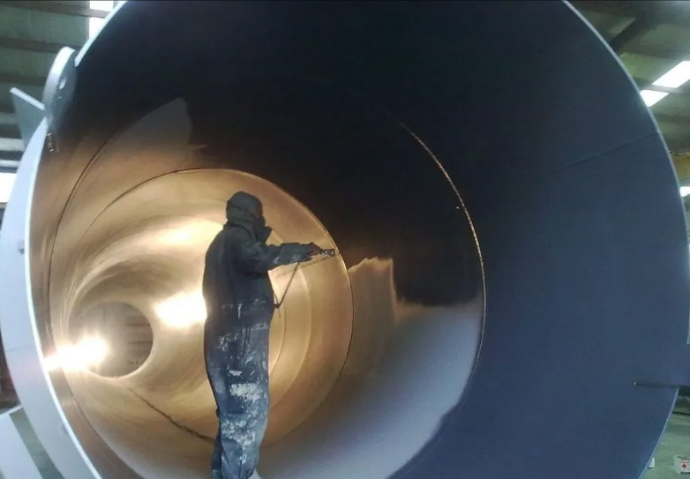

Polyurea Protective Coating for Steel
Hot spray polyurea can also be applied to correctly prepared and primed steel substrates to provide a tough, flexible protective coating.
Correct surface preparation and primer selection are essential to achieving reliable long-term adhesion.
Let's discover,
Preventive Waterproofing:
Preventive waterproofing systems are installed during concrete construction to seal vulnerable areas such as construction and cold joints.
A critical area is the joint between the concrete raft and the vertical wall. ACOCHEM offers two main solutions for these applications: hydrophilic swell joints and reinjectable injection hose systems.
Hydrophilic swell joints are installed in the joint before the concrete is poured. When exposed to water, the material expands and seals the joint. ACOCHEM offers both bentonite-based and polymer-based swell joints.
Injection hoses are also installed in the construction joint before concreting. If water infiltration occurs, the hose can be injected with resin to seal the joint. The system can also be reinjected when required.
These systems provide a preventive solution for waterproofing concrete structures, including foundations, basements, tunnels and other underground constructions.

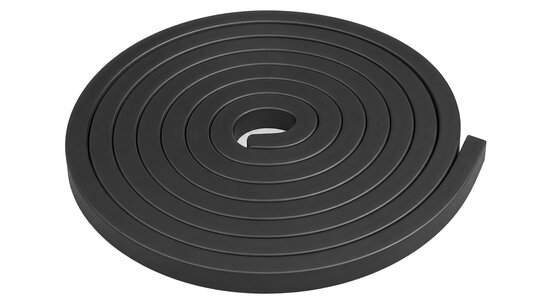

BENTOSTOP is a bentonite-based hydrophilic swelling joint designed to waterproof construction and cold joints in concrete structures.
Installed between concrete elements, such as the raft and vertical wall, BENTOSTOP expands when exposed to water and forms a swelling barrier that helps prevent water migration through the joint.
Its passive sealing principle provides a simple and effective solution for preventive waterproofing in basements, underground structures, foundations and other below-ground concrete constructions.

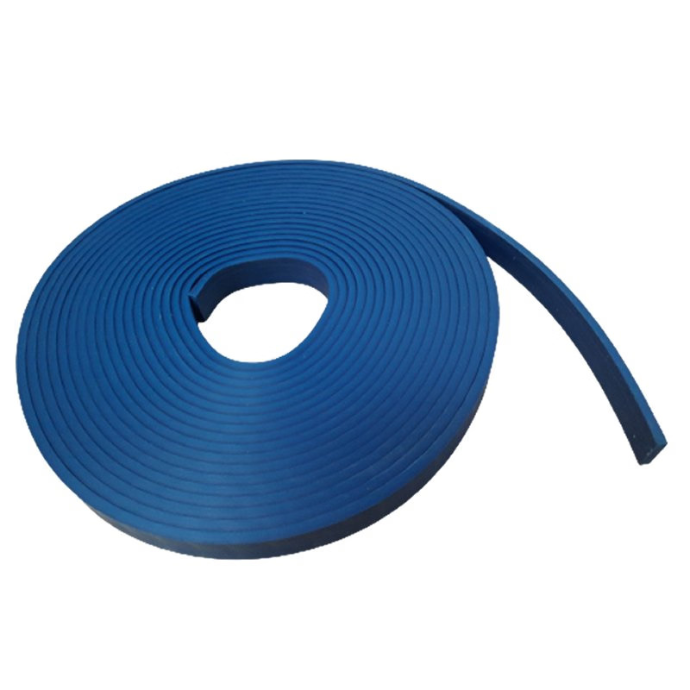

HYDROSTOP is a polymer-based hydrophilic swelling joint developed for preventive waterproofing of concrete construction joints.
When exposed to water, the polymer expands and creates pressure against the surrounding concrete, helping to seal the joint and prevent water penetration.
HYDROSTOP is suitable for applications such as raft-to-wall joints, construction joints, foundations, basements, tunnels and other underground concrete structures where reliable joint waterproofing is required.
ACOCHEM INJECTOTUBE hose systems provide a reinjectable waterproofing solution for construction joints.
The hose is installed within the concrete joint before the concrete is poured. If water infiltration occurs, a suitable injection resin can be introduced through the hose to seal the joint from within the structure.
Unlike conventional joint sealing systems, injection hoses also allow the joint to be re-injected if necessary, providing a maintainable waterproofing solution throughout the service life of the structure.
This makes injection hose systems particularly suitable for basements, tunnels, underground structures, foundations, water-retaining structures and other applications where long-term waterproofing reliability is critical.
